MECCANIXITY Bonded Sealing Washers G1/2 28.5x19x3.4mm Carbon Steel Nitrile Rubber Gasket, Pack of 50

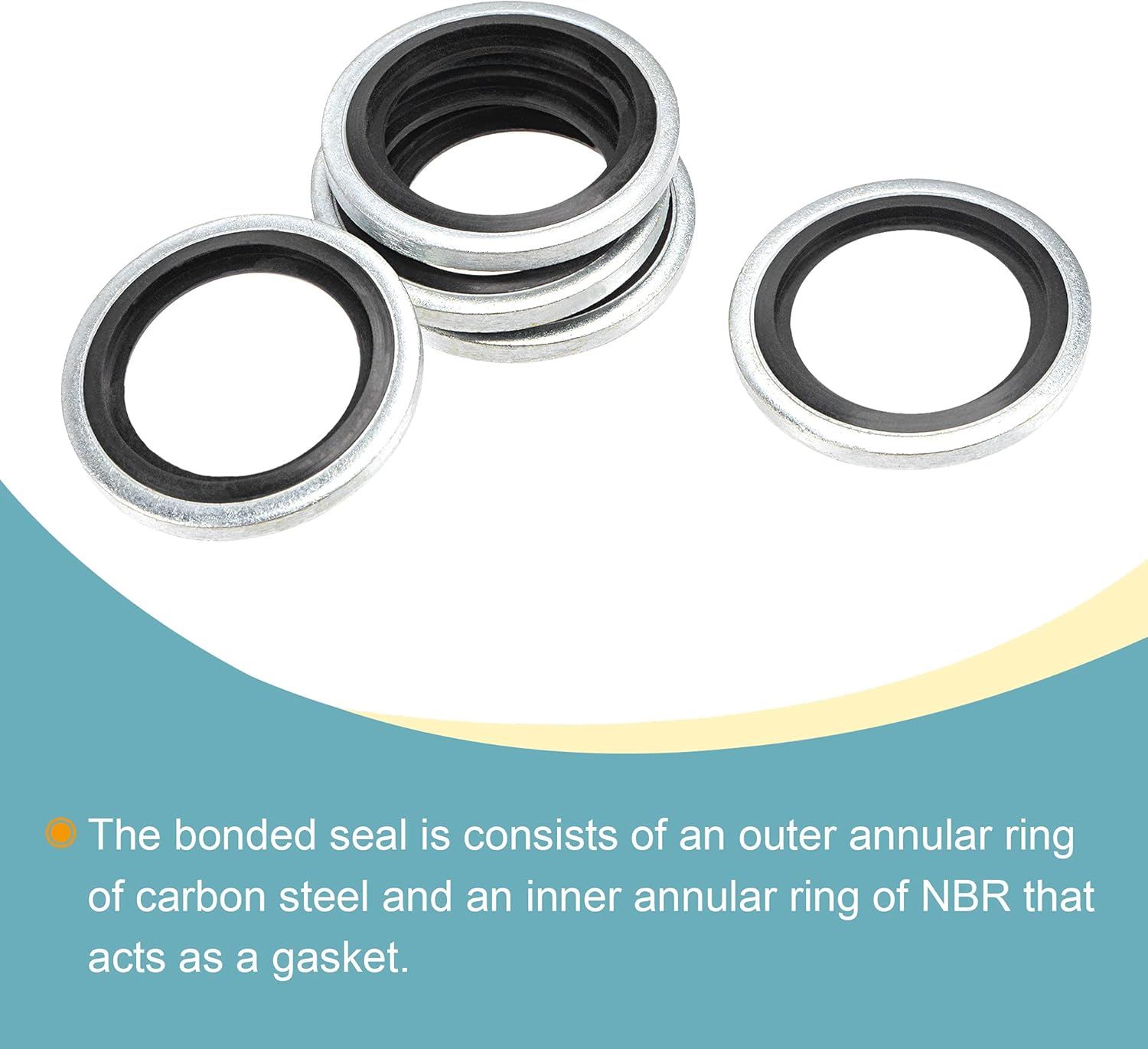

What will I get?Color: Silver, BlackMaterial: Carbon Steel, Nitrile Butadiene Rubber (NBR)Metal Surface Treatment: GalvanizedFit for Size: G1/2Outer Diameter: 28.5mmInner Diameter: 19mmThickness: 3.4mmNBR Hardness: 60ANBR Working Temperature Range: -20°C to 100°C (-4°F to 212°F)Package Contents: 50 x Bonded SealsWhat is this?A bonded seal is a type of washer used to provide a seal around a screw or bolt. Consists of an outer annular ring of carbon steel and an inner annular ring of NBR that acts as a gasket.Are there any advantages of the product?The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal.Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings.How to use it?The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines.

• The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal

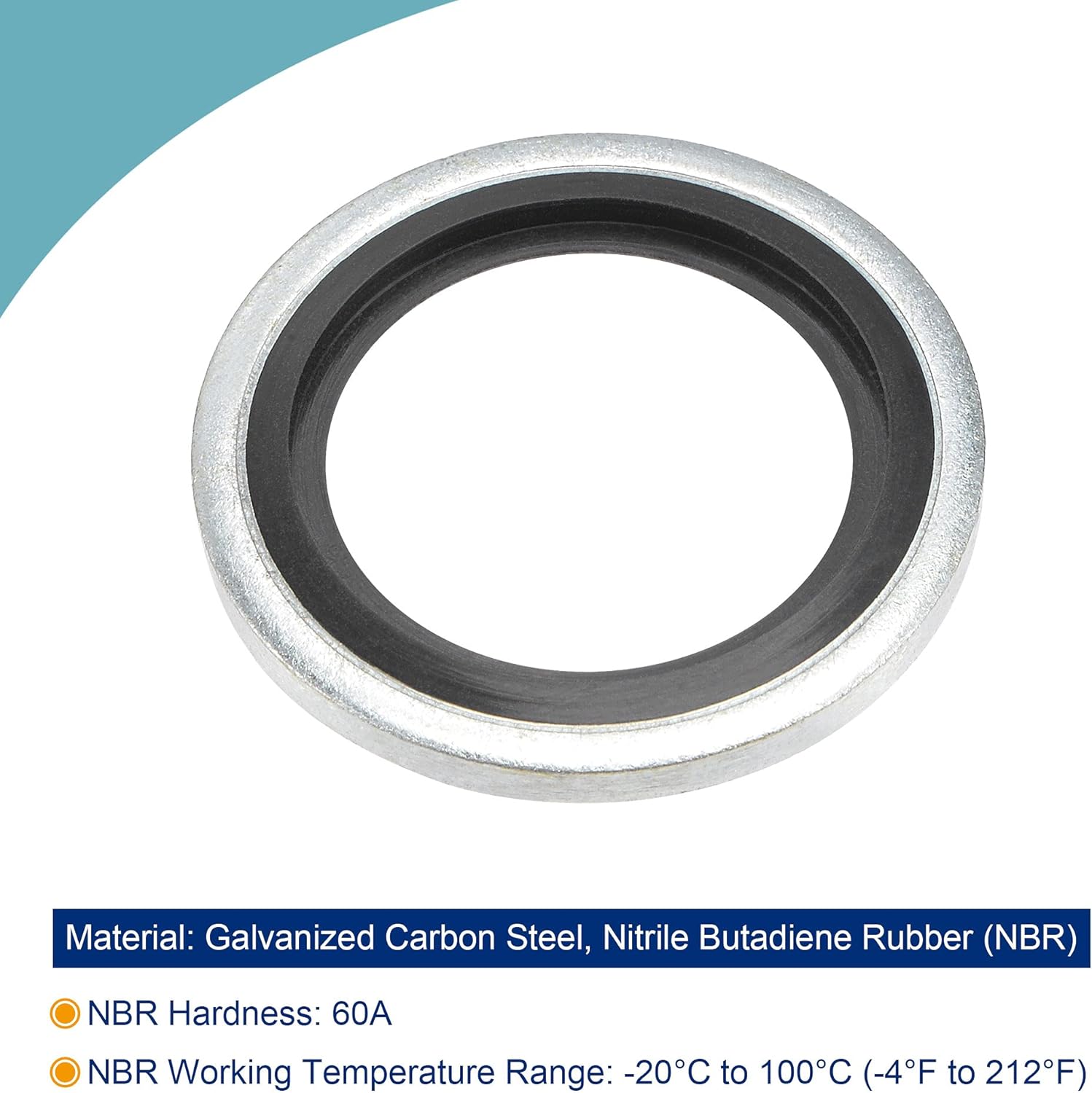

• Materials: Galvanized Carbon Steel; Nitrile Butadiene Rubber (NBR): Hardness: 60A; Working Temperature Range: -20°C to 100°C (-4°F to 212°F)

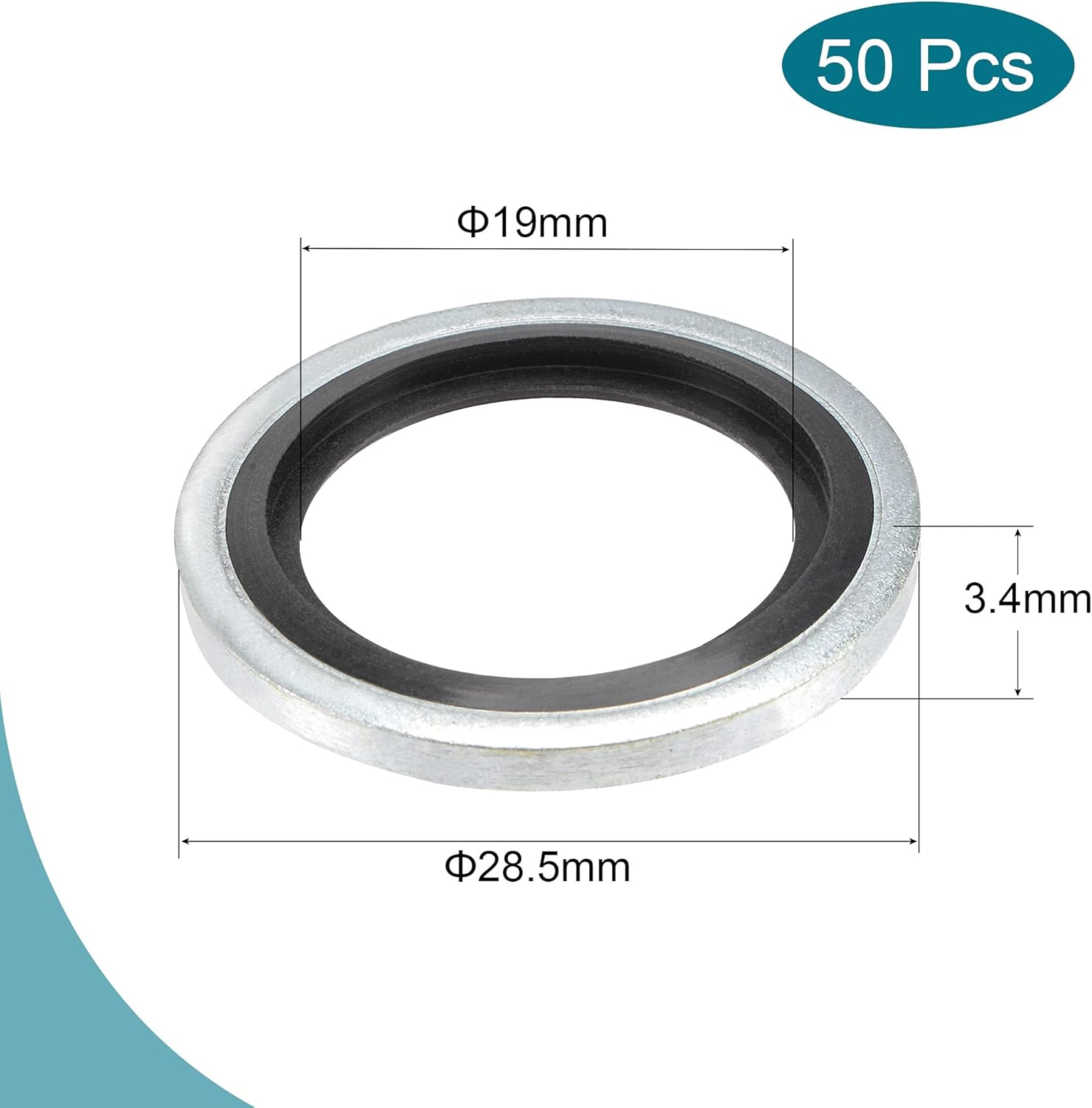

• Fit for Size: G1/2; Outer Diameter: 28.5mm; Inner Diameter: 19mm; Thickness: 3.4mm
• Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings
• The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines
