Flexible RGB LED sheet for Backlighting Dimmable, 24V 65W 288LEDs Multi-color Trimmable Flat Paper Thin Back Light Sheet Panel, 18.9X9.4 Inches Plug in LED Sheet with Spacers and Sticky Back (RGB)

This flexible and cuttable LED sheet operates at 24V and emits RGB light. SuperlightingLED colorful soft LED panel light can be used as a vibrant backlight to create an illuminated wall or glowing tabletop for a unique and elegant atmosphere. It can also be cut into letters, logos, emblems and artistic designs for creative lighting. Specifications: Light Color: RGB Sheet Size: 480mm(L)X240mm(W)X7mm(H) / 18.9”(L)X9.4”(W)X0.3”(H) LED Chip: SMD 5050 Lumen: 20-22LM per LED at Full Output, 6336LM Max per sheet LED Quantity: 288 LED Chips Input Voltage: DC24V Working Power: 65W per Sheet Current: 2.7A Cut Unit: 6 LEDs (L1.57" x W2.36") Beam Angle: 120 Degree Waterproof Rating: IP20 Lifespan: 50,000+hours Warranty: 2 Years Listing: 1 pc RGB sheet dimmable (L18.9 x W9.4 x H0.3 inches) 2 pcs 150 mm long connecting wires 2 pcs 50 mm long connectors 8 pcs screws 8 pcs screw shims 8 pcs 8mm anti-collision silicone spacers Please note that power transformer and dimmer are not included. Usage and Instructions: 1.Measure the size of the board you want to paste LED backlight sheet on, and determine the size and quantity of LED sheets you need to purchase accordingly. 2.Connect LED sheet lights together by wire or connector 3.Choose right power supply and controller for LED panel sheet. Principle: The voltage of the power supply should be the same as the voltage of LED sheet. And the driver wattage should be 1.2 times the the total wattage of LED sheets. For example, when you need to power 4 pieces of 24V 28W LED lighting sheets, the voltage of power supply should the same, also 24V. And the total wattage of 4 pieces 28W LED sheets is 4pcs x 28W=112W. So the wattage of power supply will be 112W x 1.2=135W. (Or a little bit above) Recommend WB5 model to adjust brightness. 4.Connect power supply and controller to LED light sheet panel, turn them on and ready for use. Note: 1.Please operate the connection while the power is off. 2.Please make sure that the working environment is clean and dry. 3.Please kindly prepare a 24V power transformer in advance, as it is not included. 4.If you need to adjust brightness and color of this RGB sheet LED, a dimmer is necessary.

• 【Important Note】SuperlightingLED RGB LED Light Sheets require a separate 24V power supply and RGB LED controller (both sold separately) to operate, including dimming and color-changing functions. This product is not a complete kit—the package includes only 1PC LED sheet and accessories.
• 【LED Backlight Sheet RGB Color】24-volt LED sheet RGB can produce thousands of color combinations. Each LED chip (SMD5050) generates 20-22 lumens. The maximum output is 6336 lumens per LED panel, ensuring bright and uniform light.
• 【Flexible and Cuttable】SuperlightingLED flexible LED sheet is made of soft double-layer FPC material. It can be freely folded and bent to fit curved surfaces and countertop corners, without affecting the lighting effects. Every 6 LEDs can be cut for length customization. Black lines are marked on the board to guide your cut.

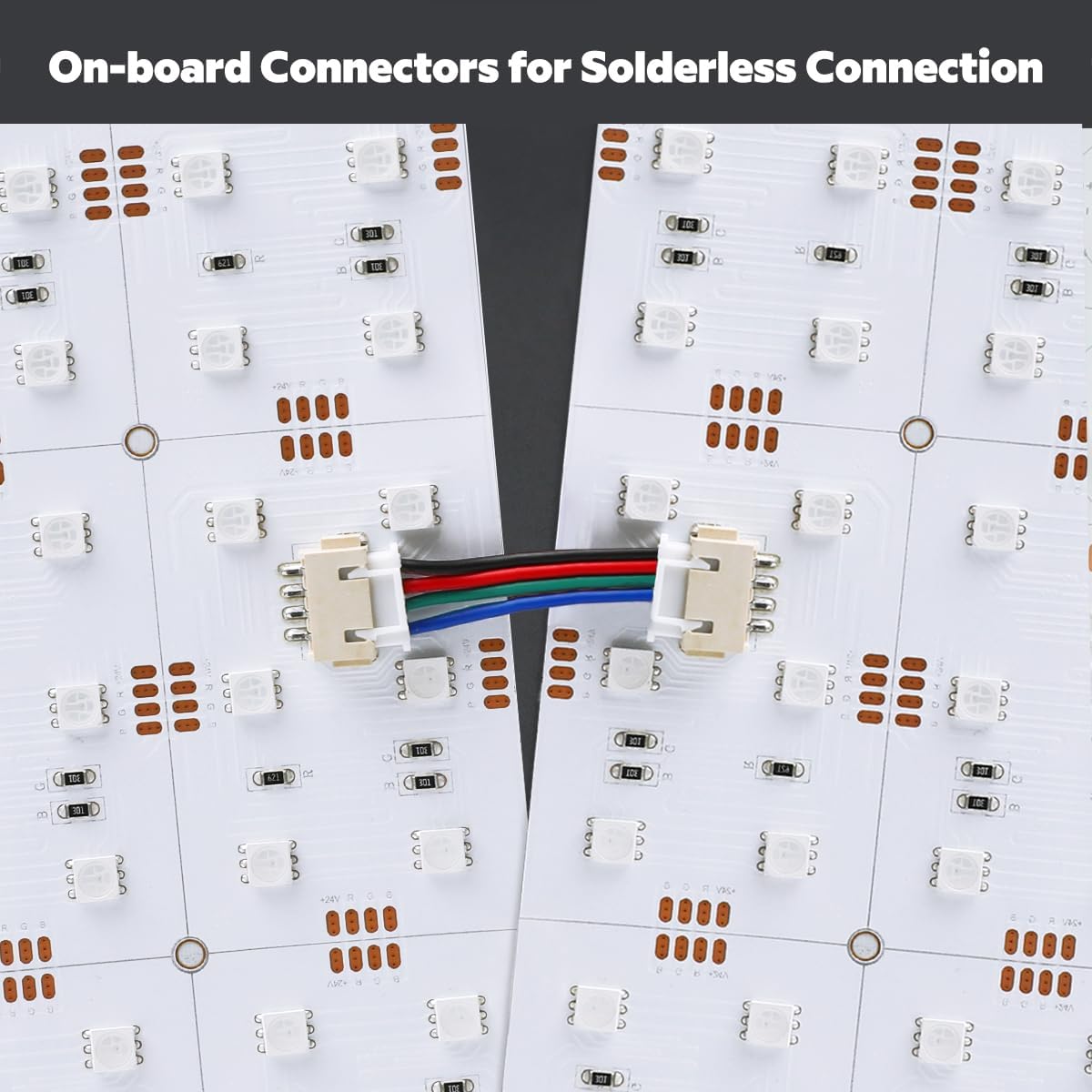

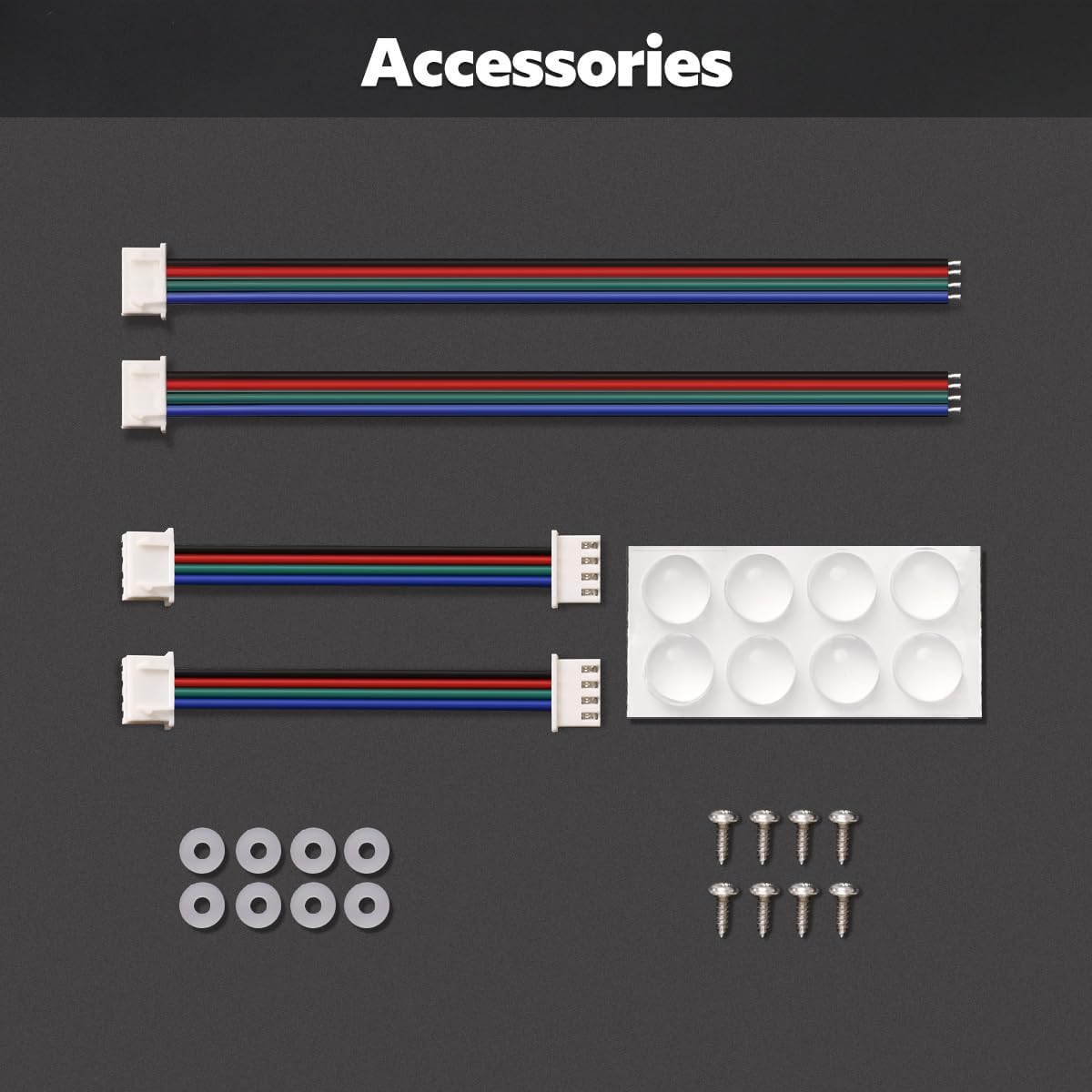

• 【Linkable for Wide Backlighting】3-in1 RGB LED sheet light is paper-thin and flat. Equipped with 8 integrated connectors for hassle-free linking—no soldering needed, plug and play. For best results, daisy chain no more than 5 LED sheets. Each LED backlight board comes with an accessory pack, including spacers, connecting wires, connection pieces, screws, and screw shims.
• 【Adhesive Backing, IP20 Indoor Use】Each colour module light sheet is designed with a blue thermal adhesive backing for quick and stable installations. The surface also has screw holes for secure installations. IP20 waterproof rating only for indoor use.
• 【Backlit Applications】LED sheet panel is often used to backlight countertops, walls, and ceilings, usually placed under marble, granite, stained glass, or translucent acrylic to create a premium ambiance. Due to their cuttable nature, they can also be cut into shapes such as letters for logo lighting.
