DONGKER 8-Channel PLC Amplifier Circuit Board,DC 3.3V/DC 5V Optocoupler Isolated Module PLC NPN Signal Converter
4.9 (140 items)
Limited Time Sale$15.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218151171 | Release Date | 2026/05/03 | List Price | $10.40 | Model Number | 218151171 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

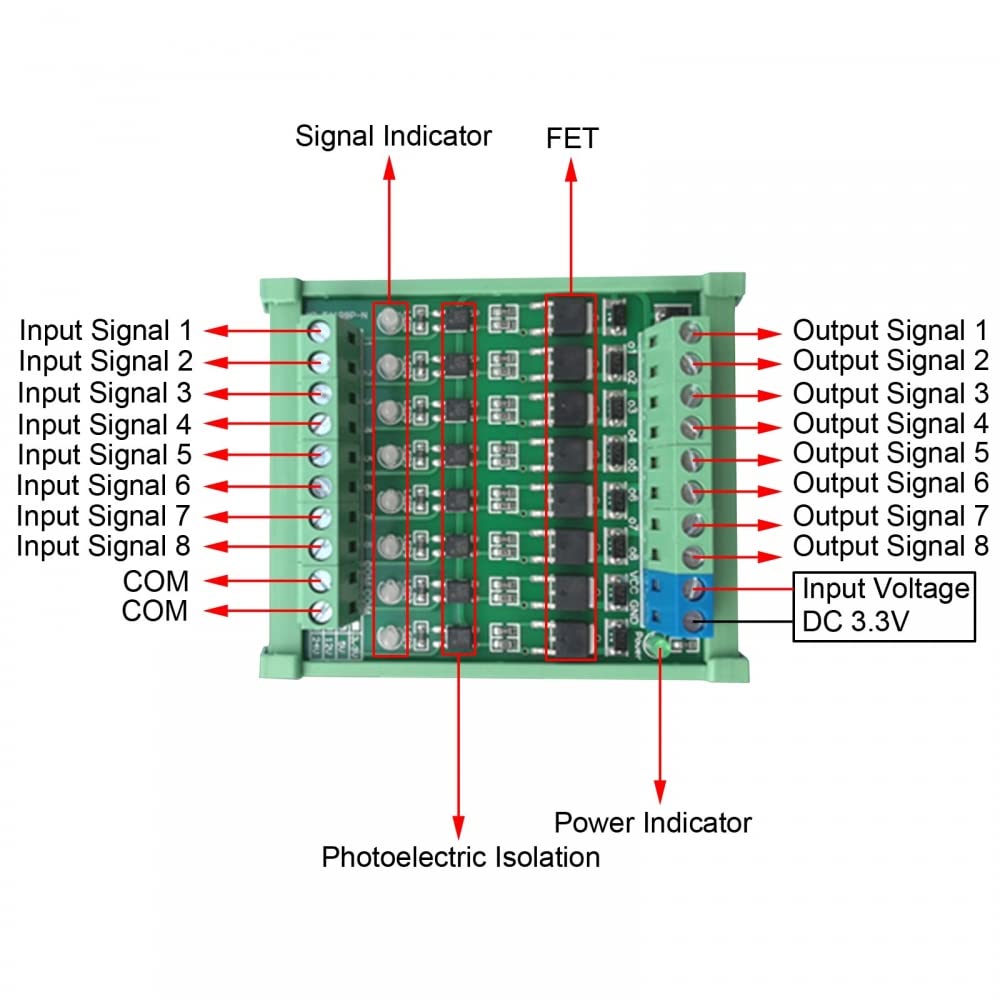

welcome to my store, Hope you have a pleasant shopping trip! Features: It is a 8-channel PLC amplifier circuit board.It is compatible with positive/negative input modes.Support independent output of each channel,the maximum output capacity can reach 30V,5A.Specifications:Input Voltage:DC 3.3V/DC 5VInput Current:5mA-10mAOutput Current:5A(Max)Output Voltage:DC 5V-24VOutput Type:non-contact typeDriving Element:P/N channel field effect transistorAction Time:1ms (Max)Reset Time:1ms(Max)Switching Frequency:2000Hz(Max)Output Property:NPN outputWork Temperature:-25℃~85℃Work Humidity:5%~95%RHSize:87*47*39mmPackage List:1 X 8-Channel PLC Amplifier Circuit BoardNotes:1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.2. Please allow 1-2cm slight dimension difference due to different manual measurement.
- It uses high-quality transistors,superior performance,stable and reliable quality.
- Input signal optocoupler isolation,strong anti-interference ability.
- It adopts DIN35mm flame retardant shell and standard guide rail type installation design.
- It has a signal indicator and a power indicator,which can be used to see the working status of the module.
- SHOP WITH CONFIDENCE: To provide you with the highest quality service, If you have any question, please feel free to contact us.We will provide after-sales service until you are satisfied.
| UPC | 774827404562 |
|---|---|
| Model | 1 |
| Voltage | 5 Volts (DC) |
| Brand Name | DONGKER |
| Unit Count | 1.0 Count |
| Item Weight | 0.1 Kilograms |
| Part Number | 1 |
| Manufacturer | DONGKER |
| Output Power | 120 Watts |
| Material Type | Flame-retardant plastic |
| Mounting Type | Surface Mount |
| Item Dimensions | 0.79 x 0.79 x 0.79 inches |
| Number of Channels | 8 |
| Operating Temperature | 85 Degrees Celsius |
| Maximum Supply Voltage | 5 Volts (DC) |
| Minimum Supply Voltage | 3.3 Volts (DC) |
